PE file format: Import Address Table

1 minute read

PE file format: Import Address Table

The Import Address Table stores the memory addresses of external functions that the program uses

Example

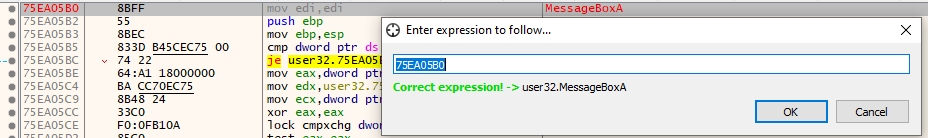

Here, we can see that function implementation of MessageBoxA resides in the address 0x75EA05B0 in memory.

user32.dll -> MessageBoxA -> 75EA05B0

MessageBoxA implementation

When calling MessageBoxA, how does the program know that MessageBoxA resides here 0x75EA05B0?

This is where the Import Address Table comes into play: it contains the RVAs (Relative Virtual Addresses) from the Image Base to the function’s implementation in memory.

The program uses the Import Address Table to dynamically resolve the addresses of these functions.

Now that we know what the IAT is, let’s see how to find it programmatically using C and WinAPI.

Programatically finding the IAT

Here’s how to get to the IAT using WinAPI and C:

// decryptedPE is a BYTE* pointing to the in-memory EXE buffer
IMAGE_DOS_HEADER* dosHeader = (IMAGE_DOS_HEADER*)decryptedPE;
IMAGE_NT_HEADERS64* ntHeaders = (IMAGE_NT_HEADERS64*)(decryptedPE + dosHeader->e_lfanew);
IMAGE_IMPORT_DESCRIPTOR* importDesc = (IMAGE_IMPORT_DESCRIPTOR*)((DWORD_PTR)imageBase + ntHeaders->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_IMPORT].VirtualAddress);
IMAGE_THUNK_DATA64* firstThunk = (IMAGE_THUNK_DATA64*)((DWORD_PTR)imageBase + importDesc->FirstThunk); // Locate IAT

Here, firstThunk is a pointer to the Import Address Table in memory.

IAT structure

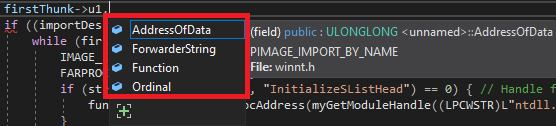

The IAT itself contains several fields:

MessageBoxA implementation

  • u1.AddressOfData: Before loading (on-disk), this is a pointer (RVA) to an IMAGE_IMPORT_BY_NAME structure (where the function name is stored).
  • u1.Ordinal : If the function is imported by ordinal (number) instead of by name.
  • u1.ForwarderString: If a function is forwarded, this field contains an RVA to ASCII strings in memory that includes the name of the forwarded module and the function inside it to look for (e.g. NTDLL.RtlExitUserThread).
  • u1.Function After the loader resolves the import, the u1.Function field is populated with the absolute memory address of the function in memory.
